Interactive Front Maintenance Led Screen Flat And Smooth Connection

Place of Origin Shen Zhen China
Marka adı AVOE LED
Sertifika CE RoHS
Model Number AE-P6.25IDRGB
Minimum Order Quantity 5sqm
Fiyat negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Name Dance Floor LED Display Pixel Pitch 5.2mm
Pixels 1R1G1B Brightness (nits) 4500
Load Bearing 2T Service Access Front / Rear
Vurgulamak

dance floor led screen

,

interactive led display

Mesaj bırakın
Ürün Açıklaması

Interactive Front Maintenance Led Screen Flat And Smooth Connection



Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2

Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2



Features:



1. Flat and smooth connection,fast and convenient instalation



2. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs



3. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition



4. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance



5. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly



6. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.



7. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.



Parameter

F Series Outdoor FO 3.9 FO 4.6 FO 4.8 FO 5.2 FO 6.2
Pixel Pitch(mm) 3.91mm 4.625mm 4.81mm 5.2mm 6.25mm
Pixel Matrix Per Sq.m 65536 46656 43264 36864 25600
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Brightness (nits) 4000 4500 4500 4500 5000
Scan 1/16 1/13 1/13 1/10 1/10
Cabinet Resolution 128×128 108×108 104×104 96×96 80×80
Power Con. (Max/Avg) 750/230 w/sq.m 730/220 w/sq.m 700/220 w/sq.m 710/210 w/sq.m 710/210 w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26ft
Cabinet Weight 10kg / ( Die-casting Aluminum)
Service Access Front / Rear
Load Bearing 2T
Refresh Rate (HZ) 1920
Grey Scale (bit) 16
Viewing Angle (H/V) 140 / 140
IP Rate IP65
Input Voltage (AC) 110 / 240

Specifications and photos are subject to change without prior notice.





Detailed



Detailed

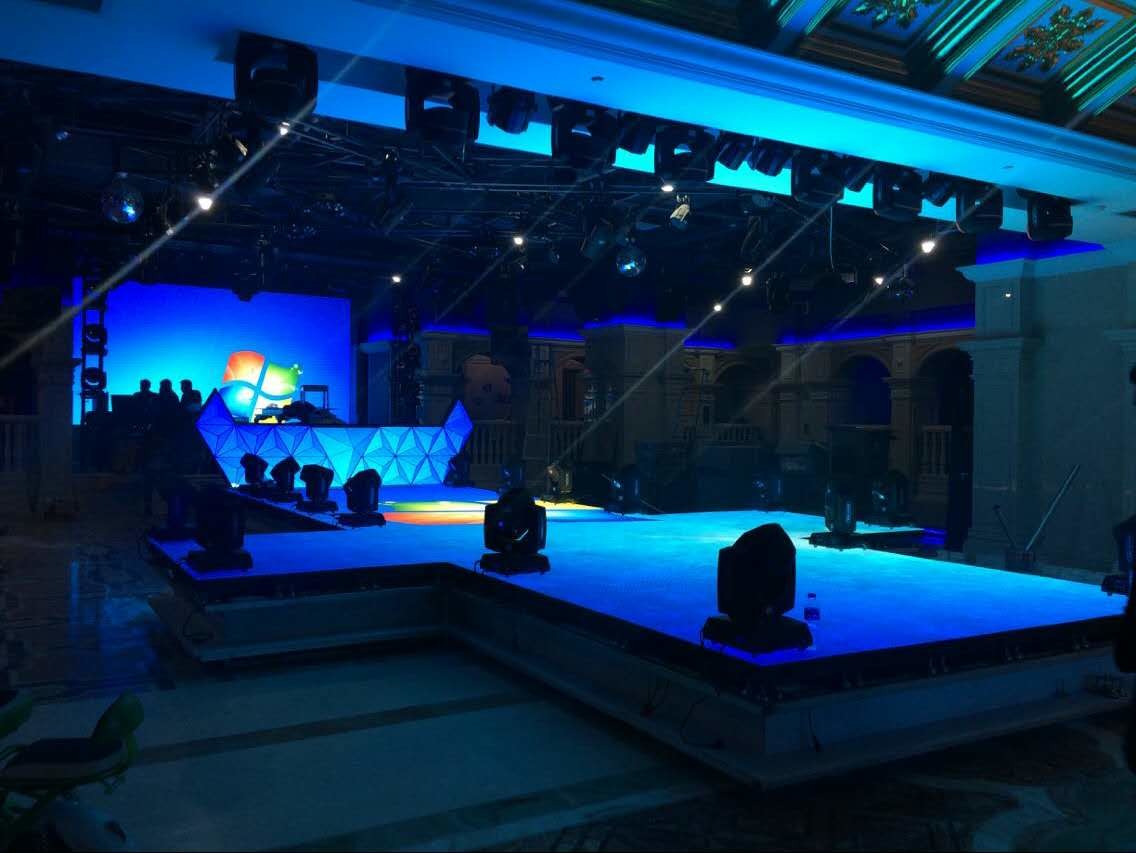

Interactive Floor LED Display

Special driving IC built inside the LED display PCB will work together with interactive control system.
It will easily and quickly make you interesting and attractive between the players and display.Interactive  Front Maintenance Led Screen Flat And Smooth Connection 0


Anti-skid, Anti-knock, Anti-glare Mask

Anti scratch Mask with HI-density PC



High Load Bearing with 2T weight

Interactive  Front Maintenance Led Screen Flat And Smooth Connection 1

Easy Installation and Maintenance

Interactive  Front Maintenance Led Screen Flat And Smooth Connection 2

Interactive  Front Maintenance Led Screen Flat And Smooth Connection 3Interactive  Front Maintenance Led Screen Flat And Smooth Connection 4

Two Floor Standing Solutions

Base Support



Rail Support



All weather Resistance

LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.
