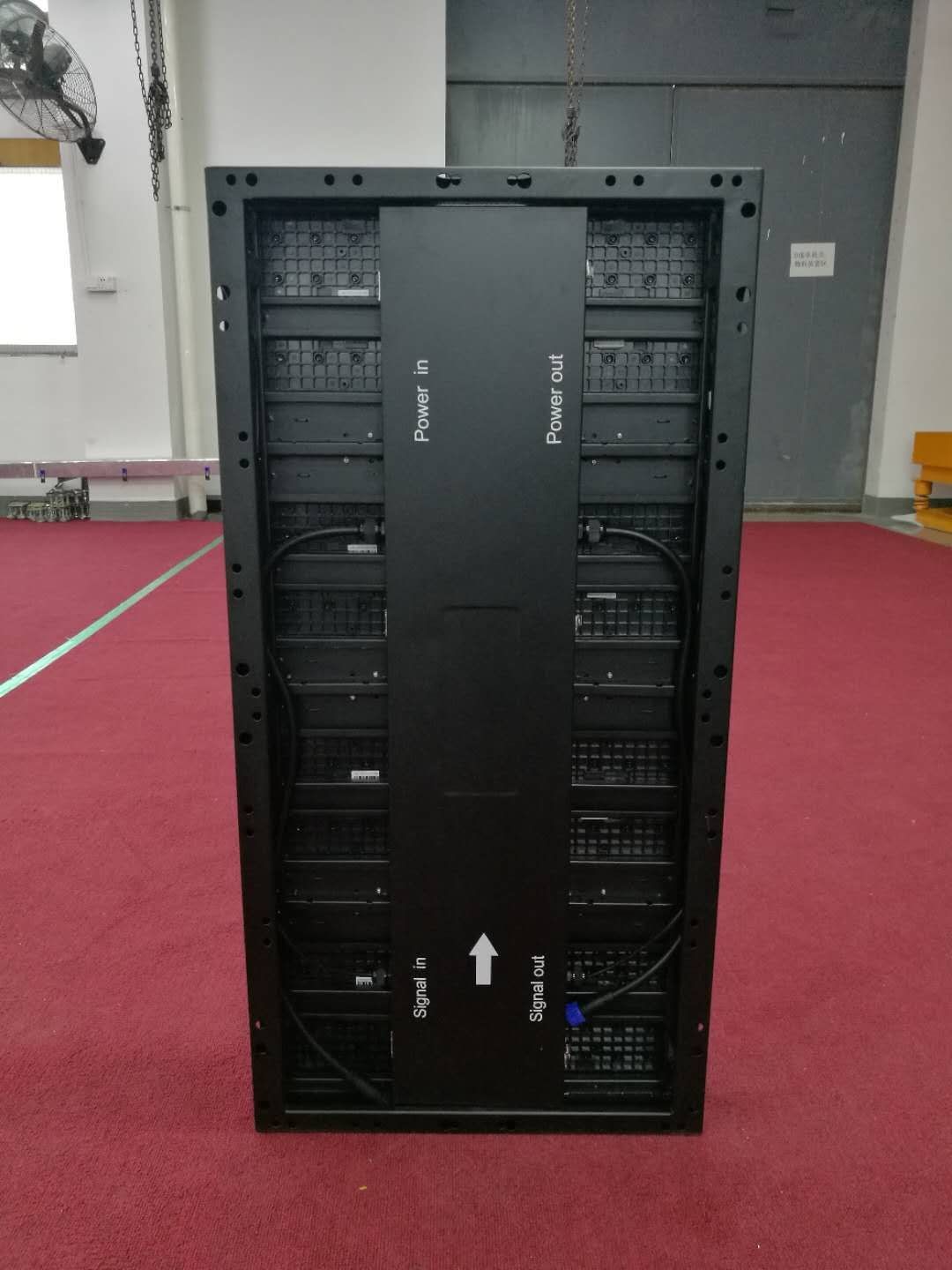

High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch

  • High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch
Place of Origin Shen Zhen China
Marka adı AVOE LED
Sertifika CE RoHS
Model Number AE-P6.25IDRGB
Minimum Order Quantity 5sqm
Fiyat negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Name Dance Floor LED Display Pixel Pitch 4.81mm
Pixels 1R1G1B Brightness (nits) 4500
Load Bearing 2T Service Access Front / Rear
Vurgulamak

dance floor led screen

,

led dance floor panels
Mesaj bırakın
Ürün Açıklaması



High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch



Outdoor: FO3.9 FO4.6 FO4.8 FO5.2 FO6.2

Indoor: FI3.9 FI4.6 FI4.8 FI5.2 FI6.2



Features



1. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly



2.Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees



3. Light weight enable one-person installation easier and simpler, save installation time. But traditional HD stage led display is over 25 Kg with the same size



4. Ultra-slim design,metal housing,non-skid treatment toughened glass cover



5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.



6. High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.





Application:Commercial Center, Advertising- Information Publish Board, Commercial Street, Railway Stations, Airports, Bus Stations, Subway, Shopping Malls, Supermarkets, Hospitals, Media Centers Etc.



Parameter

F Series Outdoor FO 3.9 FO 4.6 FO 4.8 FO 5.2 FO 6.2
Pixel Pitch(mm) 3.91mm 4.625mm 4.81mm 5.2mm 6.25mm
Pixel Matrix Per Sq.m 65536 46656 43264 36864 25600
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Brightness (nits) 4000 4500 4500 4500 5000
Scan 1/16 1/13 1/13 1/10 1/10
Cabinet Resolution 128×128 108×108 104×104 96×96 80×80
Power Con. (Max/Avg) 750/230 w/sq.m 730/220 w/sq.m 700/220 w/sq.m 710/210 w/sq.m 710/210 w/sq.m
Module Dimension 250x250mm / 0.82x0.82ft
Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26ft
Cabinet Weight 10kg / ( Die-casting Aluminum)
Service Access Front / Rear
Load Bearing 2T
Refresh Rate (HZ) 1920
Grey Scale (bit) 16
Viewing Angle (H/V) 140 / 140
IP Rate IP65
Input Voltage (AC) 110 / 240

Specifications and photos are subject to change without prior notice.





Detailed

Detailed



Interactive Floor LED Display

Special driving IC built inside the LED display PCB will work together with interactive control system.
It will easily and quickly make you interesting and attractive between the players and display.High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch 0


Anti-skid, Anti-knock, Anti-glare Mask

Anti scratch Mask with HI-density PC



High Load Bearing with 2T weight

High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch 1

Easy Installation and Maintenance

High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch 2

High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch 3High Brightness Dance Floor LED Display Metal Housing 4.81mm Pixel Pitch 4

Two Floor Standing Solutions

Base Support



Rail Support



All weather Resistance

LEDFUL floor LED display outdoor series is all weather resistance. For indoor series, the front side is waterproof.
