SMD1212 P1.667 Stage Rental LED Display Impact Proof GOB LED Screen
Place of Origin | Shen Zhen China |
---|---|
Marka adı | AVOE LED |
Sertifika | CE RoHS |
Model Number | AE-P1.667GOBR |
Minimum Order Quantity | Negotiation |
Fiyat | negotiable |
Packaging Details | Flight case, Plywood case |
Delivery Time | 10 working days after receiving the payment |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 10K sqm per month |

Ücretsiz numuneler ve kuponlar için bana ulaşın.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xName | Stage Rental GOB LED Display | Pixel Pitch | P1.667 |
---|---|---|---|
Pixel density | 360000dots/sqm | LED specification | SMD1212 |
Moudle size | 320X160mm | Application | stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation |
Usage | Indoor | Tube chip color | Full Color |
Display function | Video,Picture.Animation,Image,Animation,graphics | Warranty | 3 Years |
Life span | 100000 Hours | Cabinet size | 640x480x77mm |
Cabinet weight | 7.5KG/cabinet | Refresh rate | 1920/3840 |
Vurgulamak | P1.667 Stage Rental LED Display,SMD1212 Stage Rental LED Display,P1.667 GOB LED Screen |
SMD1212 P1.667 Stage Rental LED Display Impact Proof GOB LED Screen
P1.667 GOB LED stage display moisture-proof, waterproof, dust-proof, impact-proof, UV-resistant LED display for rental

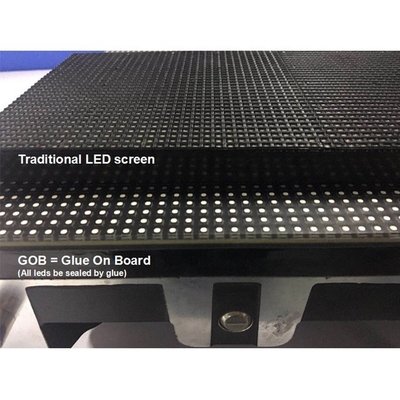

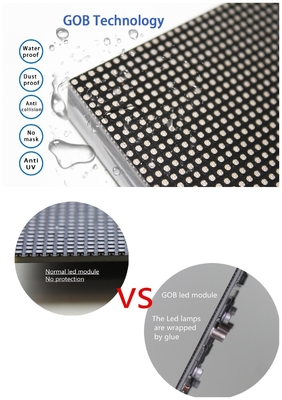

GOB is an abbreviation of Glue On Board, It is a new encapsulation technology of LED display module. which uses the most advanced transparent material to package the substrate and its LED packaging unit to form effective protection. This material not only has super high transparency performance, but also has super thermal conductivity. This technology can solve the problems of LED lamp protection. GOB products use self-developed transparent glue material to encapsulate the substrate and its LED packaging unit to from effective protection. GOB technology made LED display screen become be touched, moisture resistance waterproof, dust-proof, impact resistance and anti-collision. It is possible for the LED display to use various harsh environments.

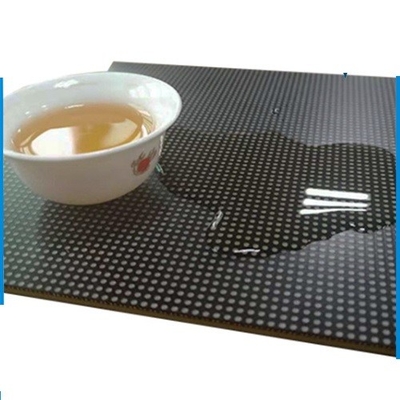

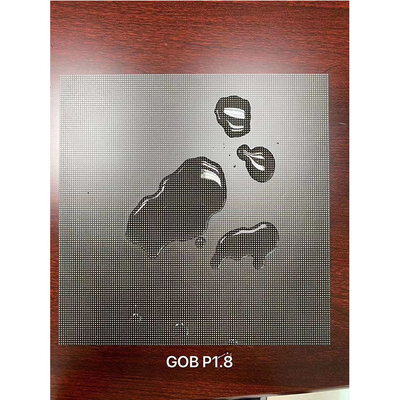

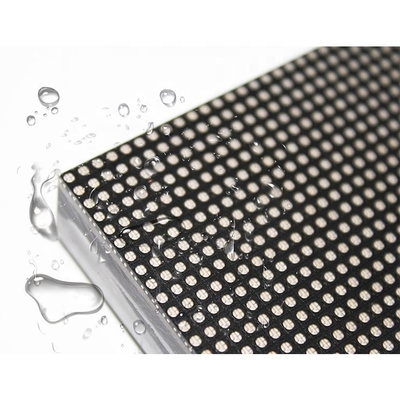

GOB small pitch LED Display can be adapted to any harsh environment, realizing the characteristics of moisture-proof, waterproof, dust-proof, impact-proof, UV-resistant, etc. GOB display products are generally aged for 72 hours before the product is assembled, and the lamps are tested. After pouring, aging for another 24 hours, reconfirm the product quality.
Advantage:
1. Classical design and natural tech, reliable quality and great performance.
2. Seamless connecting tech., screen flatness error <0.1mm.
3. Patented mask, eliminating the dark spots, improving consistency and viewing angle.
4. High contrast, ideal gray scale, presenting the most real pictures.
5. Supporting brightness and color correcting of the whole screen.
6. Ideal load of power and parameter setting, make screen under the best working condition,
moreover, furthest slow down brightness and color reduction.
Applications
Used for KTV, bar, stage background video wall, commercial advertising display in Retail chain store, Brand shop, Clothing Stores, metro station, airport, hotel, bank, supermarket, pharmacies, duty free zones.
Specifications:
GOB indoor SMD P1.667 | |
Lamp size | SMD1212 |
Resolution/mm | 1.667 |
Pixel configuration | RGB 3 in 1 |
Pixel density/pixels/SQM | 360000/㎡ |
Module resolution | 192x96 |
Module size/mm | 320x160 |
View distance | ≥1m |
Single point brightness adjust | Can be added |
Single point color adjust | Can be added |
White balance brightness | >800cd/㎡ |
Color temperature | 6500K-9500K |
Horizontal view angle | 160(degrees) |
Vertical view angle | 160(degrees) |
Signal Process bit | 10 or 14 bit |
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
Control distances | Internet cable:100m, multimode fiber: 500m, monomode fiber: 5km |
Driving mode | Constant driving current |
Scanning mode | 1/48 |
Frame rate | 60Hz |
Refresh frequency | >3840Hz |
Control mode | Computer synchronous |
Brightness adjusted range |
Manual, automatic operation, step-less continuous adjusted 255 steps. No grey loss |
Out of control point | <1/10000 |
Working hours | ≥72hours |
Mean Time Between Failure | >5000hours |
Life time | 100000hours |
Life-all-white(brightness halving) | 50000hours |
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
Maximum power / ㎡ | <800W |
Average power / ㎡ | <280W |
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
Software environment | Windows series, Windows XP |
Luminous point width between centers | Deviation<3% |
Brightness uniformity | <10% |
Color uniformity(chromatically coordinate) | ±0.003 |
Power supply request | AC85-264V(50Hz-60Hz) |
Contrast | (1000:1) |
System protection | Moisture-proof, dust-proof, high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
Humidity(working) | working:10-95% |
Humidity(storing) | storing:10-95% |
GOB LED Display Series
Pitch(mm) | 1.25mm | 1.538mm | 1.667mm | 1.86mm | 2mm | 2.5mm |
LED Type | SMD1010 | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Module size | 320*160 mm | 320*160 mm | 320*160 mm | 320* 160mm | 320*160 mm | 320*160 mm |
Resolution | 256*128 Dots | 208*104 Dots | 192*96 Dots | 172*86 Dots | 160*80 Dots | 128*64 Dots |
Density | 640000pixel/㎡ | 426800pixel/㎡ | 360000pixel/㎡ | 288700pixel/㎡ | 250000pixel/㎡ | 160000pixel/㎡ |
Refresh rate | > 3840Hz | > 3840Hz | > 3840Hz | > 3840Hz | > 3840Hz | > 3840Hz |
Brightness | > 500 cd/㎡ | N 500 cd/㎡ | > 600 cd/㎡ | > 600 cd/㎡ | > 800 cd/㎡ | > 800 cd/㎡ |
Frame rate | 50HZ-60HZ | 50HZ-60HZ | 50HZ-60HZ | 50HZ-60HZ | 50HZ-60HZ | 50HZ-60HZ |
View angle | H:160 , V:160 | H:160 ,V:160 | H:160 , V:160 | H:160 ,V:160 | H:160 ,V:160 | H:160 ,V:160 |
Cabinet size | 640*480*60mm | 640*480*60mm | 640*480*60mm | 640*480*60mm | 640*480*60mm | 640*480*60mm |
Resolution | 512*384 Dots | 416*312 Dots | 384*288 Dots | 344*258 Dots | 320*240 Dots | 256*192 Dots |
Materials | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Weight | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg |
IP Level | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
