Commericial Weatherproof 110° 10mm Outdoor LED Display Board
Place of Origin | Shen zhen China |
---|---|
Marka adı | AVOE LED |
Sertifika | CE RoHS |
Model Number | AE-P10OFRGB |
Minimum Order Quantity | 5sqm |
Fiyat | negotiable |
Packaging Details | Flight case, Plywood case. |
Delivery Time | 10 working days after receiving the payment |
Payment Terms | T/T, Western Union, MoneyGram, L/C |
Supply Ability | 10K sqm per month |

Ücretsiz numuneler ve kuponlar için bana ulaşın.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xName | Outdoor LED Display Screen | Resolution/mm | 10mm |
---|---|---|---|
Pixel Density(pixel/㎡) | 10000 | White Balance Brightness (cd/㎡) | ≥10000(adjustable) |
Max Power Consumption | 360W/cabinet | Color Temperature | 3200-9300(adjustable) |
Cabinet size | 960*960mm | ||
Vurgulamak | 10mm Outdoor LED Display Board,110° Outdoor LED Display Board,110° led p10 board |
P10 Weather Proof Outdoor LED Screen/LED display board For Commericial advertising
Features
1. Big viewing angle to at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion.
2. To pictures and character, have clear, exquisite and real display effect.
3. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
4. Thermostatically controlled fan: Unique temperature control design works only when the temperature is higher than the pre-set temperature.
5. Flat screen, no gap. Cabinets were made by high-precision molding plastic injection, no slit on the screen.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.
Aplication:
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
led Display technical parameter
Pixel Density(pixel/㎡) | 10000 pixels |
White Balance Brightness (cd/㎡) | ≥10000(adjustable) |
Max Power Consumption | 360W/cabinet |
Average Power Consumption | 280W/cabinet |
Color Temperature | 3200-9300(adjustable) |
View Angle | Horizontal 110°;Vertical 110° |
Best Viewing Distance(m) | 10m—100m |
Display Work Method | 1/4 scan |
Digital Processing | 14 bit |
Gray Scale | 65536 levels per color |
Refresh Frequency (Hz) | ≥800 |
Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
Waterproof | Yes |
Working Temperature(ºC) | -20~+45 |
Humidity(RH) | 10% - 80% |
Stored Temperature (ºC) | -30~+60 |
Lifetime (50%Brightness)(Hours) | ≥100,000 |
Input Voltage(VAC) | AC 220(or 110V) |
Input Power Frequency(Hertz) | 50 to 60 |
Data Connection | Super CAT6 Cable or Fiber |
Operating System | Windows(98/2000/XP/Vista) |
Blind Spot Rate | <0.00001 |
Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) | <2 |

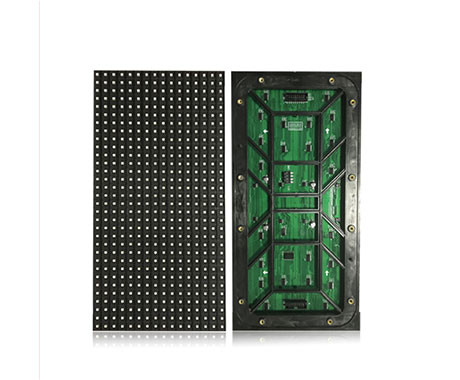

Pixel Configuration | SMD3535 | Pixel Pitch | 10 mm |
Module Resolution | 32x16 | Module Size(W*H) | 320mm x 160mm |
Weigth Per Module | 0.52kg | Max Power Consumption | 30W |
LED Display Cabinet
Cabinet Size(W*H) | 960mm × 960mm | Module Qty | 18 pcs |
Cabinet Resolution | 96 x 96 | Cabinet Area | 0.92㎡ |
Weight Of One Cabinet | 40 kg | Cabinet Pixel | 10000 |
Cabinet Flatness | <0.2/㎡ | Cabinet Material | Steel Cabinet |
Competitive Advantages:
1. Preminent effects: Clear and stable pictures without distortion and disturbance.
2. High quality: adopting first-class chips and wafers imported from abroad
3. Flexible form: continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on
4. off-line running function: adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line
Produce all kinds of Pitch: P4, P4.81, P6 P8, P10,...
