Safety P4 Cylinder Led Display , Custom Shaped Led Screen Anti High Temperature

Place of Origin Shen Zhen China
Marka adı AVOE LED
Sertifika CE RoHS
Model Number AE-P2.5ICRGB
Minimum Order Quantity 5sqm
Fiyat negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Name Creative LED Screen Pixel pitch (mm) P4 Indoor
Pixel density (dot/m²) 62500 Pixel color RGB
Module units size (mm) 240 mm * 240 mm Brightness (cd/m²) 900 cd ~ 1200 cd
Vurgulamak

irregular led screen

,

foldable led display

Mesaj bırakın
Ürün Açıklaması

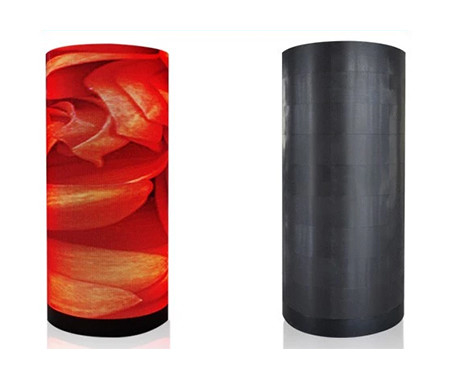

Safety P4 Cylinder Led Display , Custom Shaped Led Screen Anti High Temperature



Detailed Product Descriptions

1. CE,ROHS,ISO9001, FCC,CCC,SAA,PSE,PCC&ROHS,C-TRCK&RCM

2. High refresh rate and brightness
3. Energy saving
4. fast delivery
5. 2 years warranty



It's the best creative LED large screen system you're looking for. It produces vivid, color rich images in any lighting condition from wide viewing angles.. Configure it the way you want it –in virtually any shape or size and see your content come alive like never before.

Features
1. Video function
2. Text /image/information publish
3. Advertising
4. Safety function
5. Accurate system:no error occurs.
6. Response time :real time.
7. Reaction function
8. Remote monitoring –details.
9. Remote and step on powering system
10. anti-lightening functions
11. anti-high temperature functions
12. System protection function



The led display system has some protection functions of anti-high temperature, Anti-corrosion, pest control, waterproof, dust-proof, lightning protection, anti-static, wind, earthquake, anti-jamming systems.
13. Set up parameter
Brightness, grey scale, contrast ration, temperature parameter set up function.
14. System extension function
Video camera, HD camera, DVD, can be introduced into the system.



Technical specification                                               Product modules
Pixel pitch (mm) P1.875 Indoor P2 Indoor P2.5 Indoor P3 Indoor P4 Indoor
Pixel density (dot/m²) 284444 250000 160000 111111 62500
Pixel color RGB
LED Size / Color SMD 1010 SMD 1010 SMD 1515 SMD 2020 SMD 2020
Module units size (mm) 240 mm * 240 mm
Module definition (dot) 128 dots * 64 dots 120 dots * 60 dots 96 dots * 48 dots 80 dots * 40 dots 60 dots * 30 dots
Scan freq (Hz) 1920 Hz ~ 3840 Hz
Scan mode 1/32 scan 1/30 scan 1/24 scan 1/20 scan 1/15 scan
Brightness (cd/) 900 cd ~ 1200 cd
View angle 140° / 140°
Min.viewing distance ≥ 1.8 m ≥ 2 m ≥ 2.5 m ≥ 3 m ≥ 4 m
Frame freq (Hz) 60 Hz
Working voltage (V) 220V / 110 V ~ 220 V
Power Consumption Max/Avg (W/m²) 700 W / 350 W 700 W / 350 W 700 W / 350 W 800 W / 200 W 450 W / 150 W
IP level IP31
Life span 100000 hours





Competitive Advantages:

1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation



2. After sale service
Quick response
Prompt question resolving
Service tracing

3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.

4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.

5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
