SMD3535 P8 Outdoor Led Display Screens For Business Light And Slim Design 960*960mm Cabinet

Place of Origin Shen Zhen China
Marka adı AVOE LED
Sertifika CE RoHS
Model Number AE-P8OFRGB
Minimum Order Quantity 5sqm
Fiyat negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Name Outdoor LED Advertising Screen Pixel Pitch(mm) 8mm
Pixel Density(pixels/㎡) 15625 pixel/㎡ LED Type SMD3535
Panel Material Die-casting Aluminum Control System Nova/Linsn/Dbstar
Vurgulamak

led advertising panel

,

led street display

Mesaj bırakın
Ürün Açıklaması

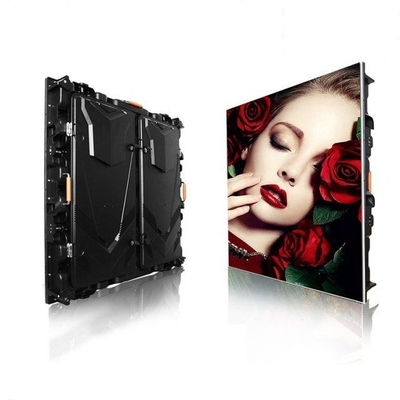

SMD3535 P8 Outdoor Led Display Screens For Business Light And Slim Design 960*960mm Cabinet



Features

1.Light and slim cabinet allows quick build screen in short time.
2. Die-cast aluminum molding technology produces high precision and rigid cabinet. It can ensure the whole screen in good uniformity.
3. High brightness uniformity and color uniformity.

4. Excellent flatness and no splicing gap between modules.
5. Quick installation and removal with facile connection lock


Application

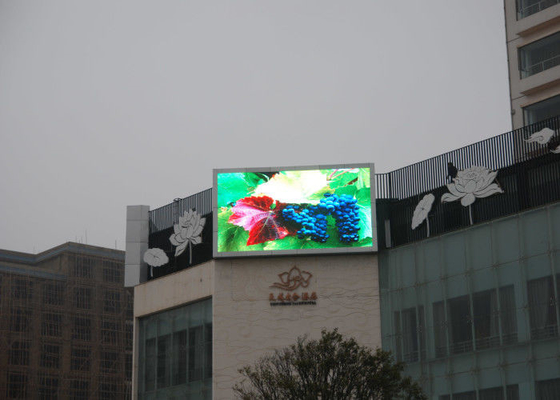

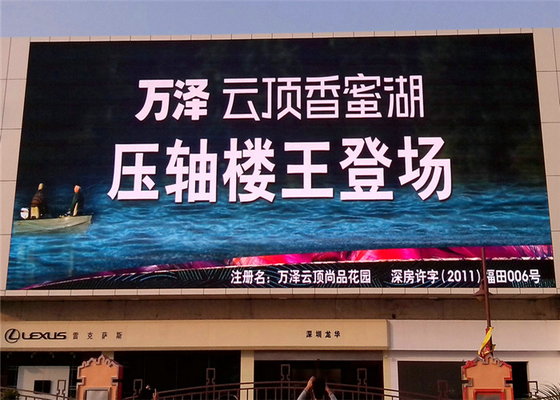

1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.


Parameters

Module Parameter



1
2 Model AE-P8OFRGB
3 Pixel Pitch 8 mm
4 LED Type SMD3535
5 Configuration 1R1G1B
6 Module Resolution 40*20 pixels
7 Module Size 320*160 mm



Panel Parameter



8 Material magnesium alloy
9 Cabinet Resolution 120*120 pixels
10 Cabinet Size 960*960*100mm
11 Cabinet Weight 25Kg
12 IP Rating IP65



Display Parameter



13 Pixel Density 15625 pixel/㎡
14 Refresh Rate ≥ 1920Hz
15 Gray Scale 16 Bit
16 Brightness ≥ 7000 cd/㎡
17 Scan Mode 1/5
18 Frame Rate 50HZ~60HZ
19 Viewing Angle H:140°, V:140°
20 Control System Nova/Linsn/Dbstar
21 Operation System Windows/me/200NT/XP
22 Working-Temperature '-20℃~60℃
23 Working Humidity 10%~90% RH
24 Input Voltage AC 110~220 V (±5%)
25 Blind spot rate ≤0.01%
26 MTBF 35000 Hour
27 Lifespan 100000 Hour



Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.
