AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm

Place of Origin Shen Zhen China
Marka adı AVOE LED
Sertifika CE RoHS
Model Number P3.91-7.82
Minimum Order Quantity 5sqm
Fiyat negotiable
Packaging Details Flight case, Plywood case
Delivery Time 10 working days after receiving the payment
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 10K sqm per month

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Name Transparent LED Display Pixel pitch 3.91-7.81
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Brightness ≥1000nit
Tube chip color Full Color,RGB Display function Video,Animation,Graphics,Animation/ graphics/ video,Video/Image
Usage Indoor,Outdoor Warranty 5 years
Life span 100000 Hours Refresh rate 1920Hz,3840Hz
Vurgulamak

clear led screen

,

glass window led display

Mesaj bırakın
Ürün Açıklaması

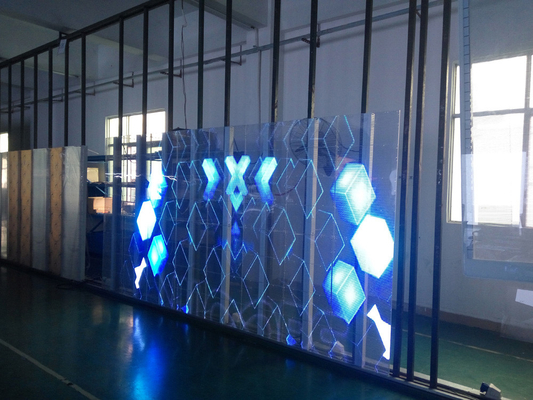

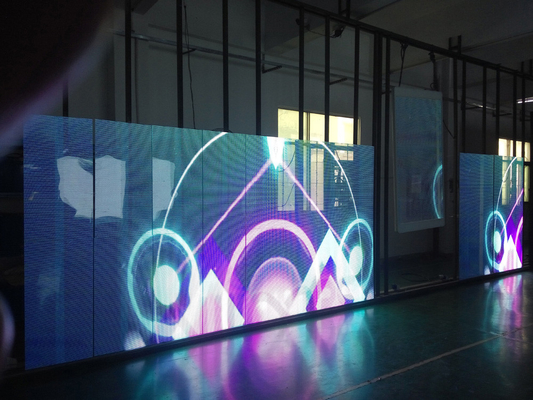

AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm







Product Description



(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

(2) 16348 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade.

(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL

.(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.



Parameters

Model P3.91 P3.91 P7.81 P7.81 P10.4
Pixel pitch 3.91-7.81 3.91-7.82 7.81 7.81-15.625 10.4
Lamp Indoor SMD2121 Outdoor SMD1921 Outdoor SMD2525 Outdoor SMD2525 Outdoor SMD2525
Pixel density 32768 32768 16384 8192 9230
Module size 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
Cabinet material Acryic Aluminum Steel
weight 15KG/㎡ 15KG/㎡ 14KG/㎡ 14KG/㎡ 14KG/㎡
Transparency 65% 65% 70% 75% 80%
Brightness ≥1000nit ≥4500nit ≥4500nit ≥4500nit ≥4000nit
Refresh rate ≥1920HZ
Scan mode 1/165 1/85 1/25 1/25 1/35
Max power consumption 400W/㎡ 600W/㎡ 600W/㎡ 550W/㎡ 550W/㎡
Average power 120W/㎡ 180W/㎡ 180W/㎡ 180W/㎡ 180W/㎡
PCB FR-4 four layers board,2.0mm thickness
Driver IC MBI5124,Hight Refresh Rate
Installation Hanging or Stacking
Brightness level 256 Level





AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 0

AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 1



AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 2

AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 3AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 4AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 5AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 6AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 7AVOE transparent video LED display For shopping mall windows brightness 4500cd/sqm 8





Application

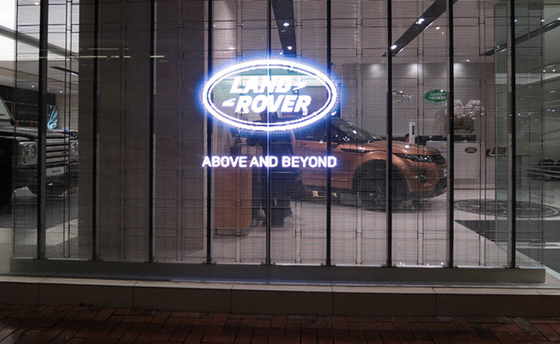

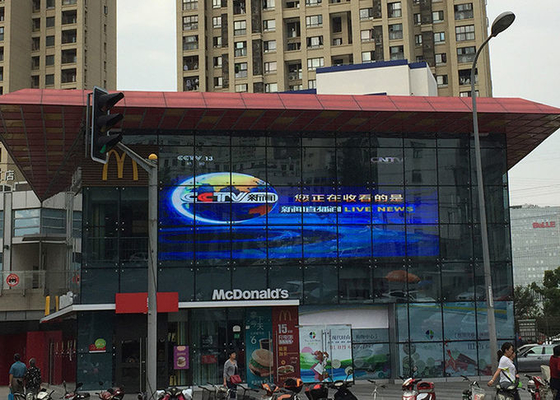

AVOE LED Transparent Curtain Wall LED Display for building glass wall, Auto 4S shop,
high-end clothing stores, retail windows, stage rental, et
