SMD2121 LED Poster Display
Place of Origin | Shen Zhen China |
---|---|
Marka adı | AVOE LED |
Sertifika | CE RoHS |
Model Number | AE-P3PLD |
Minimum Order Quantity | 1 unit |
Fiyat | negotiable |
Packaging Details | Flight case, Plywood case |
Delivery Time | 10 working days after receiving the payment |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 10K sqm per month |

Ücretsiz numuneler ve kuponlar için bana ulaşın.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xName | LED Poster Display | Resolution/mm | 3mm |
---|---|---|---|
LED driving method | 1/32 scan | Resolution(W× H) | 64×64 |
LED Type | SMD2121 | Application | hotels, restaurants, shopping malls, banks, |
Usage | Indoor | Pixels | 3mm |
Screen dimension | Customized | Tube chip color | Full Color |
Display function | Video,Animation | Brightness | 1200 cd/m2 |
Warranty | 3~5 Years | Life span | 100000 Hours |
Led chip | Epistar | Product name | Led Video Display screen |
Color | 1R1G1B | Pixel density | 111111 dots/m2 |
Refresh rate | 1920/3840 | Scan mode | 1/32 Scan |
Vurgulamak | SMD2121 LED Poster Display,P3mm LED Poster Display,SMD2121 Commercial LED Display |

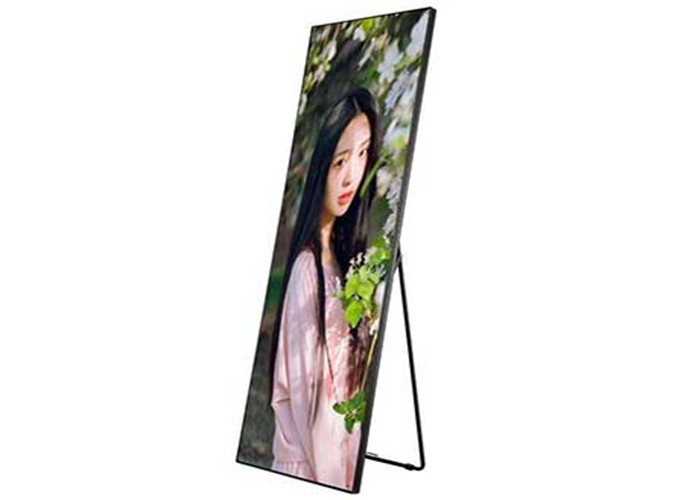

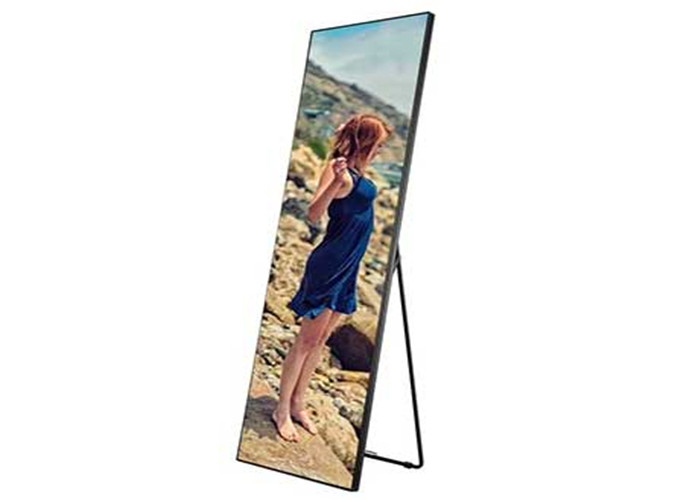

SMD2121 LED Poster Display
Commercial P3mm Portable LED Poster Display For Banks / Chain Shops 160° View Angle
Feature
HD Image Quality
Refresh rate up to 3840Hz;
Brightness at 1500nits, 3 times brighter than LCD display;
160°view angle;
High color reproduction;
Compare with indoor LCD poster, with high brightness, super thin & low-power consumption,
LED Digital poster is also suitable for bright occasion.
Applicable field:
Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations:Telecommunications, post offices, hospital, schools;
Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Product specification
indoor P3 poster LED Display | ||||||||||||||
Lamp size | SMD2121 | |||||||||||||
Resolution/mm | 3mm | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 111111/m² | |||||||||||||
Module resolution | 64x64 | |||||||||||||
Module size/mm | 192*192mm | |||||||||||||
View distance | ≥0.5m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >1500cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/32 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >1920Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1000W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |

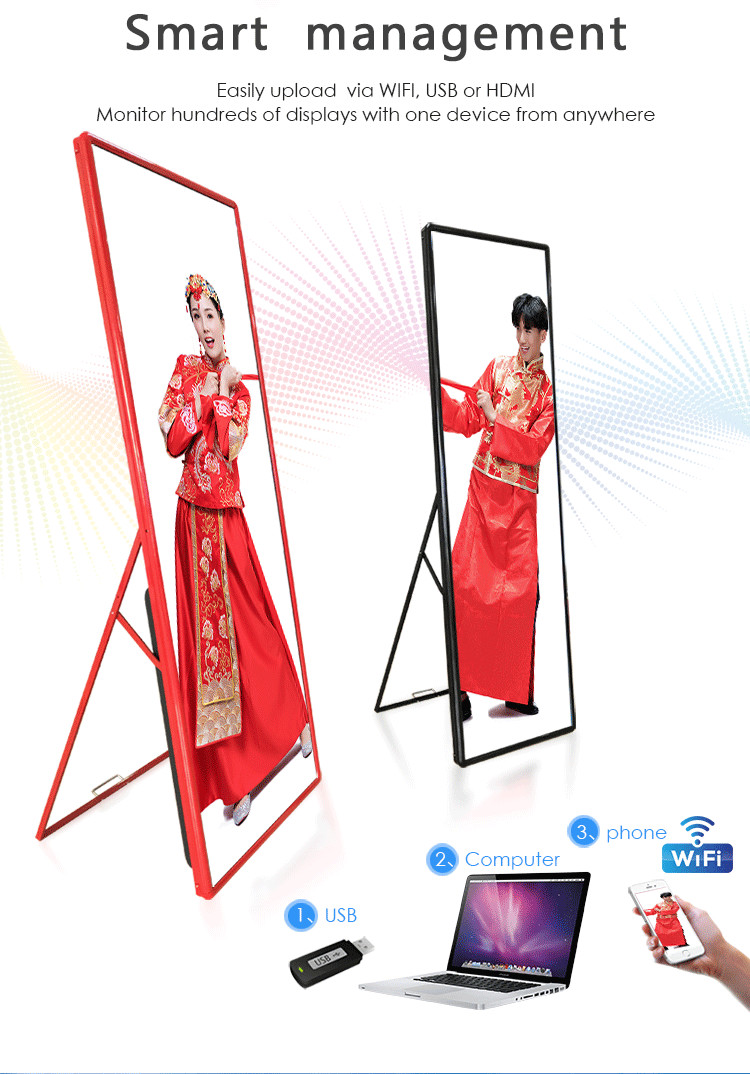

Control Methods
Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

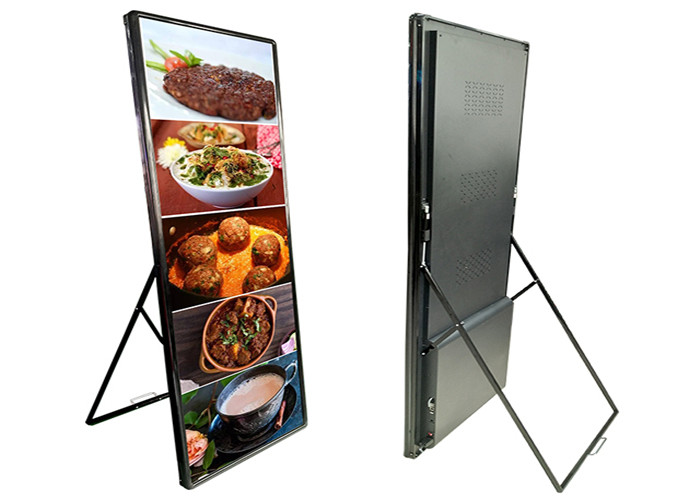

Multi-installation Method
Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation
